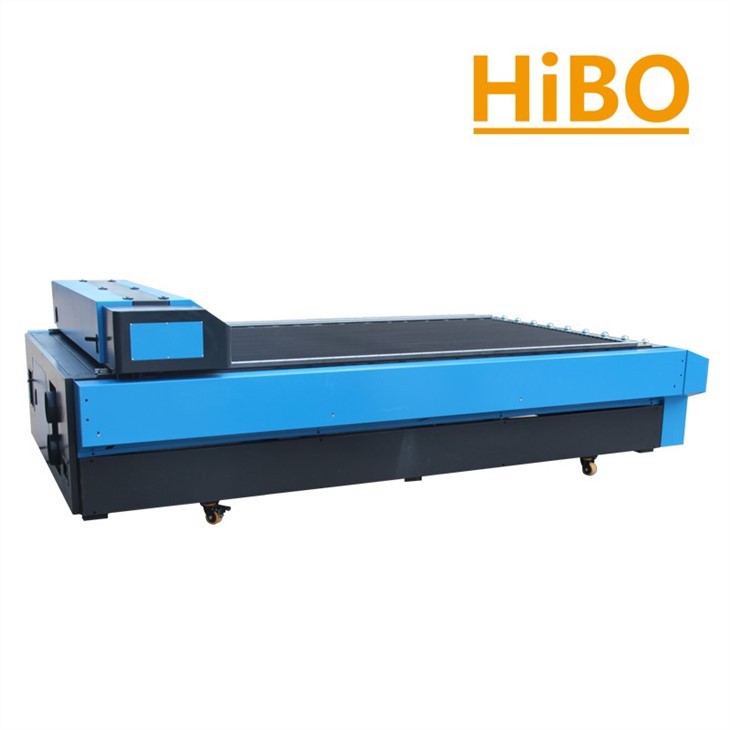

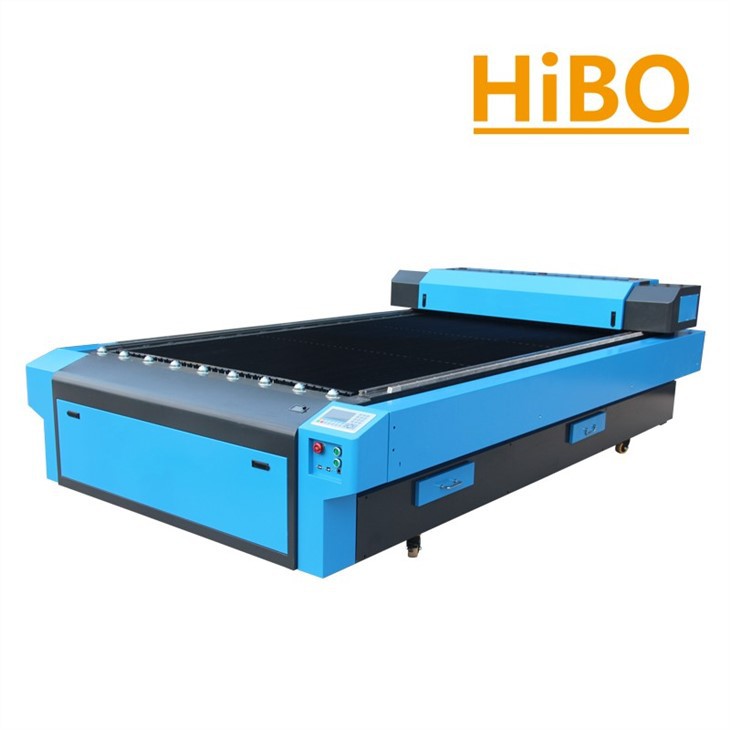

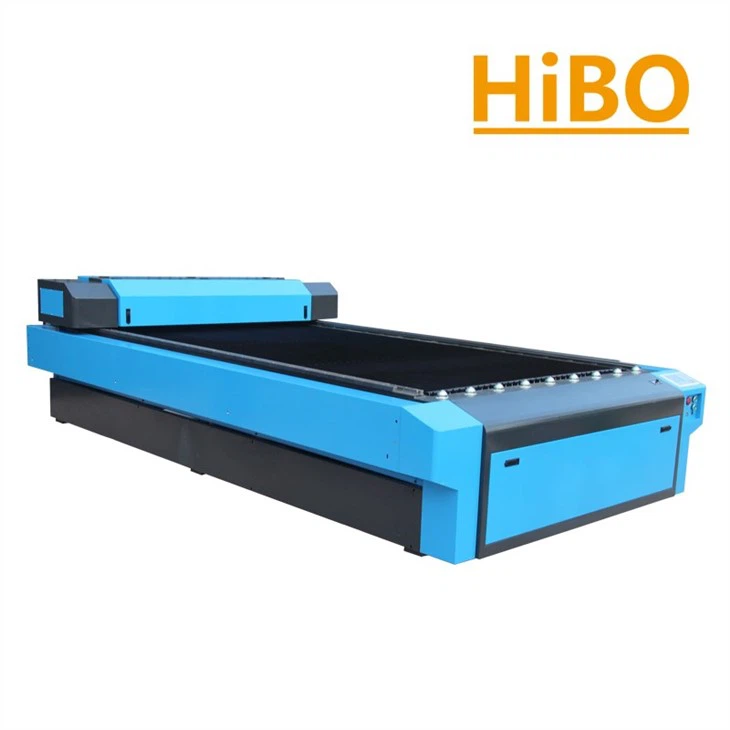

Acrylic Laser Cutting Machine
Acrylic Laser Cutting Machine
Model: HB-1325
Laser type: sealed CO₂ glass laser tube
Laser power: 80W/100W/130W/150W/180W
Working voltage: (220V or 110V)±10% 50HZ/60HZ
Application Industry： | Advertising industry, woodworking industry, lighting word engineering, LED advertising characters, furniture manufacturing, craft products, logos, packaging, architectural models, industrial molds, decoration, clothing, textiles, leather, industrial fabrics, etc. |
Processing Materials: | It can cut non-metallic materials such as acrylic, two-color board, PVC, wood board, MDF, leather, paper, cloth, etc.; it can engrave glass and stone; it can also engrave cylindrical non-metallic materials such as wine bottles and logs and lifting platform. |
Technical Parameters
| Model | HB-1325 |

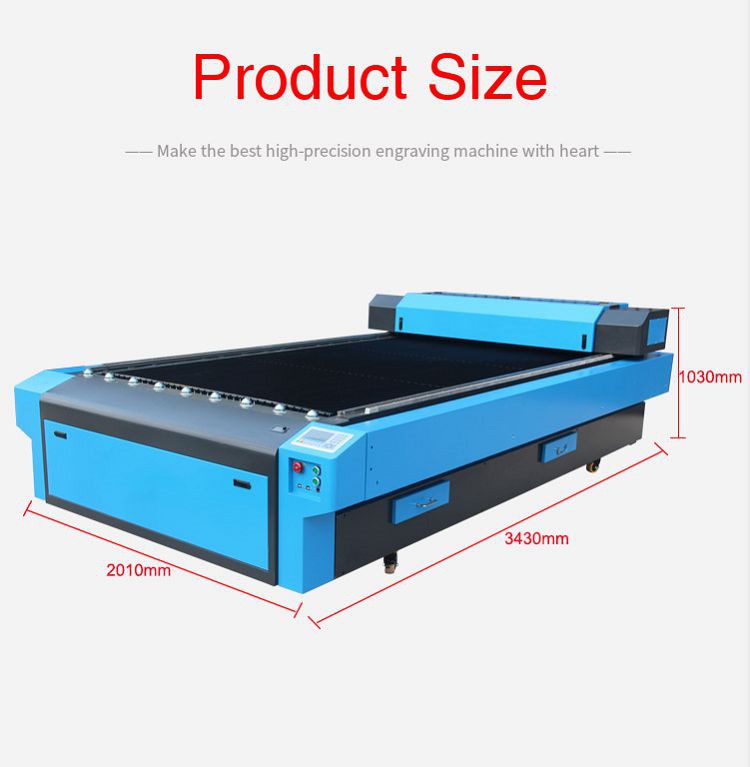

| Working Area | 1300mm*2500mm （4ft*8ft） |
| Laser Power | 80W/100W/130W/150W/180W |
| Worktable | Aluminum Knife Platform |
| Laser Tube | Sealed CO2 glass laser tube |
| Cutting Depth | 0mm-20mm(depending on the material) |
| Minimum Shaping Character | 1mm*1mm |
| Resolution Ratio | 0.0254mm (1000dpi) |
| Power Supply | (220V or 110V)±10% 50HZ/60HZ |
| Resetting Positioning | Accuracy less than or equal to 0.01mm |
| Water protecting sensor and alarm | Yes |
| Opetating Temperature | 0℃-45℃ |
| Supported graphic formates | AI, BMP, DST, DWG, DXF, LAS, PLT |
| Software | RD works |
| Engraving on Curve Surfaces (Yes/No) | No |
| Control Configuration | DSP |
| Water cooling (Yes/No) | Yes |
| Package | Plywood |

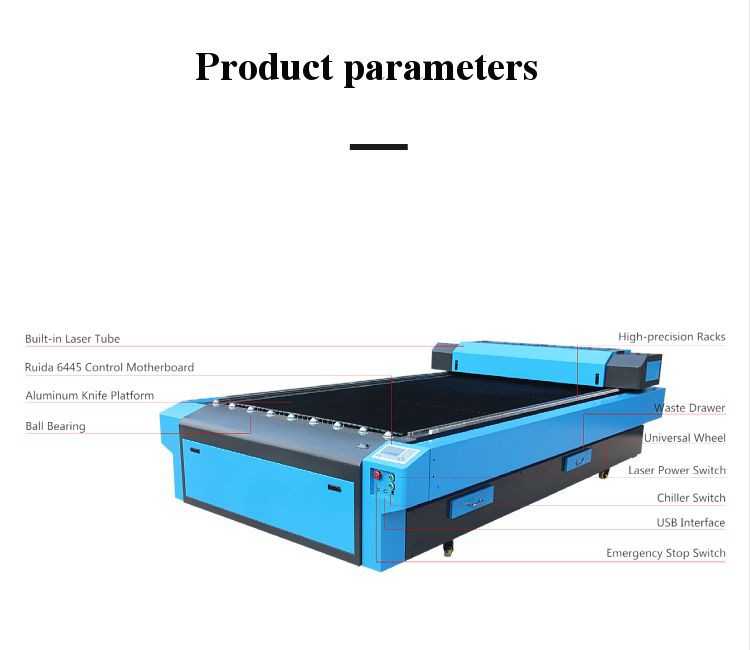

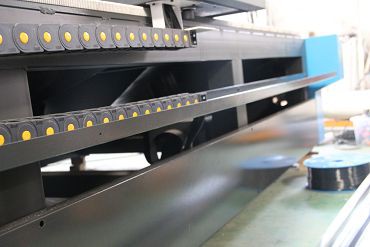

| Racks The acrylic laser cutting machine's racks replace traditional belts with less resistance and faster operation. |
Ruida 6445 Control Motherboard Ruida 6445 control motherboard has Chinese and English large-screen LCD display. Users can retrieve and store files arbitrarily and operate it conveniently. They can output the data in layers and set the engraving precision, |
|
| Brand Laser Tube The acrylic laser cutting machine adopts domestic brand CO2 laser tube, which has the characteristics of strong stability, high power and long life. |

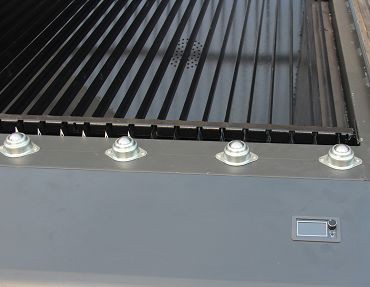

Ball Bearing The ball bearing make the feeding smooth, efficient and stable. |  |
 | Scrap Collection Drawer The Pull-out structure is very convenient. It can save time and effort. |
Packaging Process
Factory And Exhibition
Certifications
Hot Tags: acrylic laser cutting machine, China acrylic laser cutting machine manufacturers, suppliers, factory, stainless steel sheet metal cutting machine, Paper Laser Cutting Machine, Wood Plank Laser Cutting Machine, YAG Laser Cutting Machine, leather shoes laser cutting machine, Small Fiber Laser Cutting Machine
|
|
|
|
About the Laser
What materials can I cut or engrave with a CO2 laser?
CO2 laser machine can cut, engrave, mark a wide range of non-metal and organic materials, such as acrylics, woods, plywood, MDF, paper, cardboard, fabrics, leather, glass, stone, ceramics, and more.
What materials can I cut or engrave with a Fiber laser?
Fiber Laser can cut, engrave, mark on metals, such as steel, stainless steel, aluminum, brass, copper, silver, gold, and on some non-metal polymers, wood, fabric.
Shipping
How is the machine packaged?
Laser equipment is shipped in a wooden box with Styrofoam to protect fragile parts
How long does it take to ship by air?
After we receive the order, send the machine to one of the main DHL, FEDEX and TNT offices in China. Smaller machines are shipped by courier service. Typically, it takes 10 to 14 days.
How long does it take to ship by sea?
Larger machines are shipped by sea. Usually, it takes 6 to 10 weeks. We can help you arrange delivery directly to your location.
Customer Support
Is there a warranty?
Manufacturers extend the warranty on their devices to 18 months and replace parts at the factory purchase price.
